Manual Metallographic Grinding and Polishing Machine

Our manual metallographic grinding and polishing machine is the most widely adopted lab equipment for metallographic specimen pretreatment, covering the whole workflow from pre-grinding, rough grinding, fine grinding to rough polishing and final fine polishing. Different from automatic polishing devices, manual operation allows technicians to flexibly adjust pressure, grinding angle and running speed according to material hardness, effectively avoiding surface deformation, edge collapse and subsurface damage of soft alloys, brittle materials and precision workpieces.

We have developed a complete MP series lineup covering single disc metallographic grinding polishing machine and double disc metallographic grinding polishing machine, with multiple speed control modes including fixed two-speed, stepless variable speed, forward & reverse rotation, four preset constant speed and dual-disc independent control. The working disc supports customized diameters of 203mm, 230mm and 250mm, equipped with ABS or high-strength fiberglass reinforced plastic housing for long-term continuous laboratory operation. All units are fitted with circulating water inlet & drainage systems to cool samples and wash away abrasive debris during grinding and polishing, ensuring flat, scratch-free specimen surfaces for accurate metallurgical microstructure observation and failure analysis.

These bench-top polishers are extensively applied in automotive manufacturing, aerospace, machinery processing, new material R&D, third-party testing institutions, university metallurgy laboratories and hardware quality control departments. We supply complete standard accessories including metallographic sandpaper, polishing velvet, aluminum retaining rings, inlet & drain pipes and dust covers to help users start sample preparation right after installation.

We divide all MP models into Single Disc Manual Metallographic Grinding & Polishing Machine and Double Disc Manual Metallographic Grinding & Polishing Machine, helping buyers quickly screen equipment according to daily sample processing volume and working efficiency demands.

1. Single Disc Manual Metallographic Grinding and Polishing Machine

Suitable for small laboratories, occasional sample testing and educational teaching scenarios, featuring compact footprint, low energy consumption and easy maintenance. Users complete all grinding and polishing procedures on one working disc, perfect for enterprises with small daily specimen throughput.

 Included Models & Core Differentiated Features

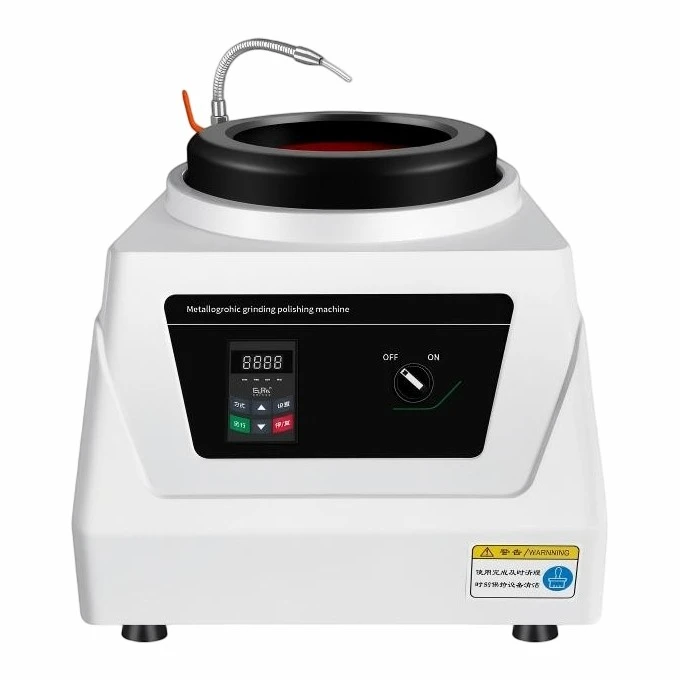

• MP-1B (Economical Fixed Speed Single Disc Model)

Budget single disc manual metallographic grinding polishing machine with 180W motor, LED digital speed display, fiberglass housing, ideal for entry-level lab routine metallographic inspection.

• MP-1B NEW (Upgraded High Power Single Disc Model)

550W heavy-duty motor version of MP-1B, stable continuous running performance for long-hour sample preparation tasks in industrial workshops.

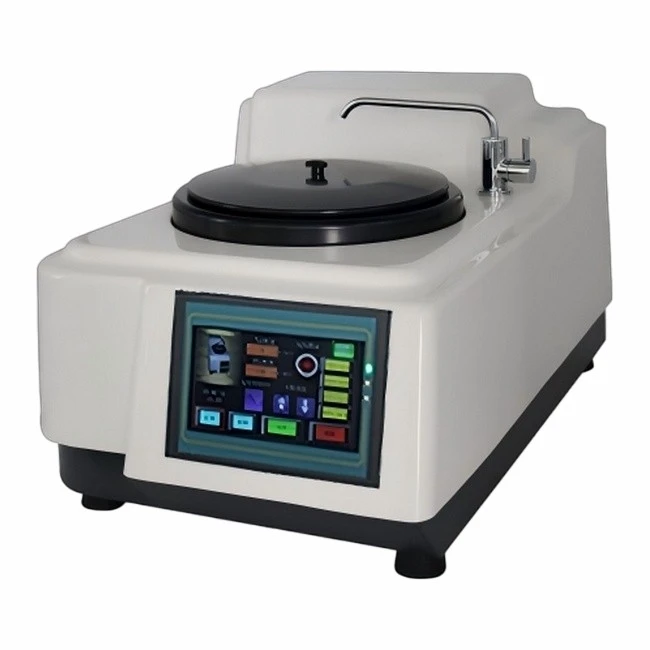

• MP-1S (Touch Screen Four-Speed Single Disc Premium Model)

LCD touch control programmable metallographic grinding polishing machine, built with 4 preset constant speeds plus 50–1000rpm stepless speed regulation, ensures consistent sample surface quality for standardized laboratory testing.

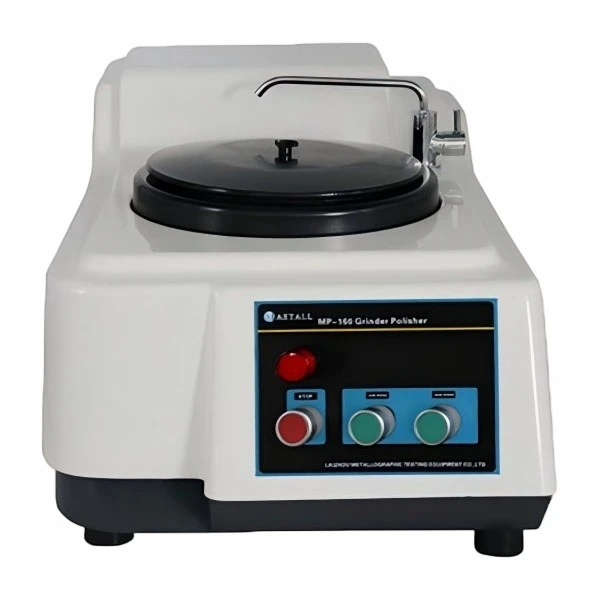

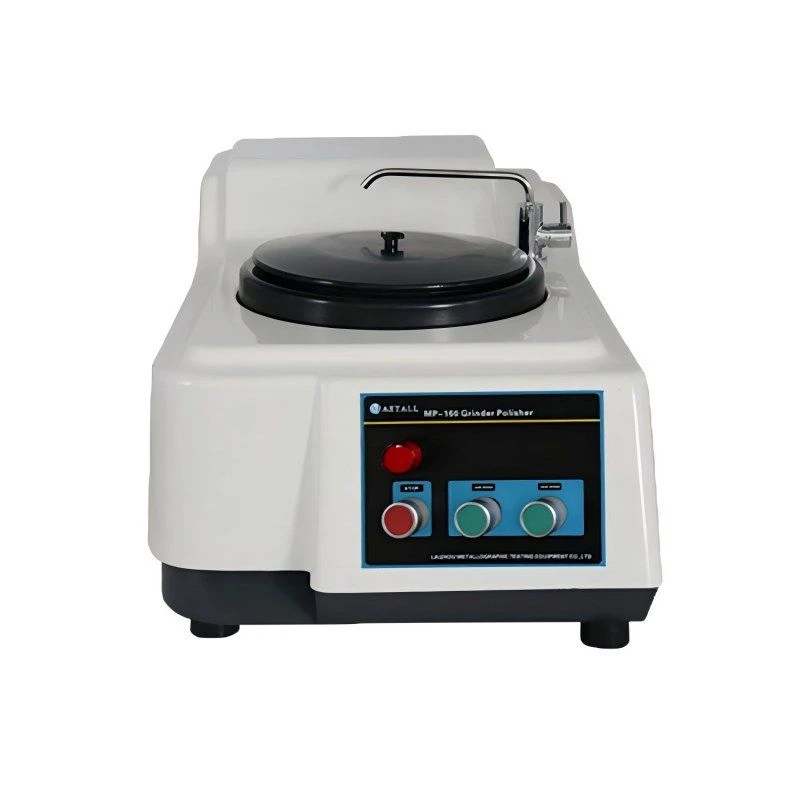

• MP-160 (Two Fixed Speed Single Disc Polisher)

Cost-effective 300/600rpm fixed speed single disc metallographic polisher, simple knob operation, widely used in small factory quality control departments.

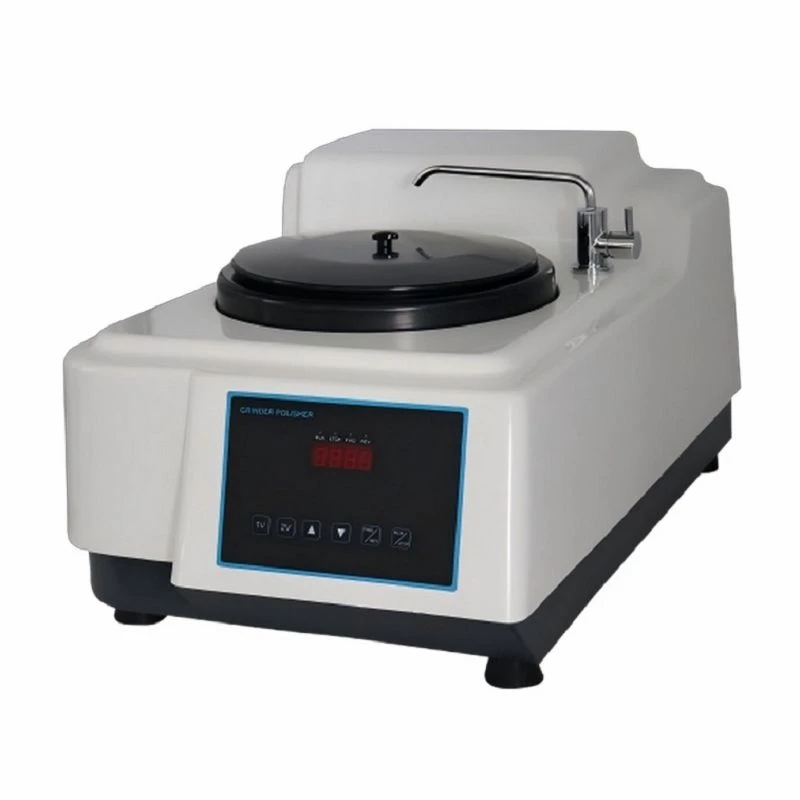

• MP-160E (Variable Speed Forward Reverse Single Disc Model)

50–600rpm stepless adjustment plus clockwise & counter-clockwise disc rotation design, prevents unilateral sample abrasion, perfectly fits soft metal and high-precision material specimen preparation.

2. Double Disc Manual Metallographic Grinding and Polishing Machine

Two independent working discs allow operators to finish rough grinding and fine polishing simultaneously, greatly improving daily sample processing efficiency. Optional single control or dual independent control modes meet diversified batch testing requirements of large laboratories and third-party inspection organizations.

 Included Models & Core Differentiated Features

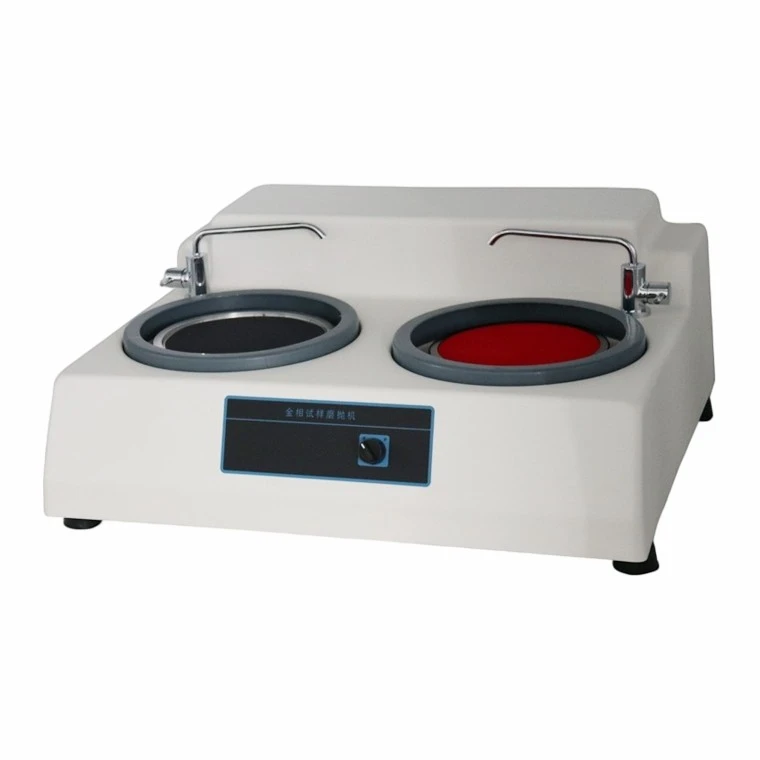

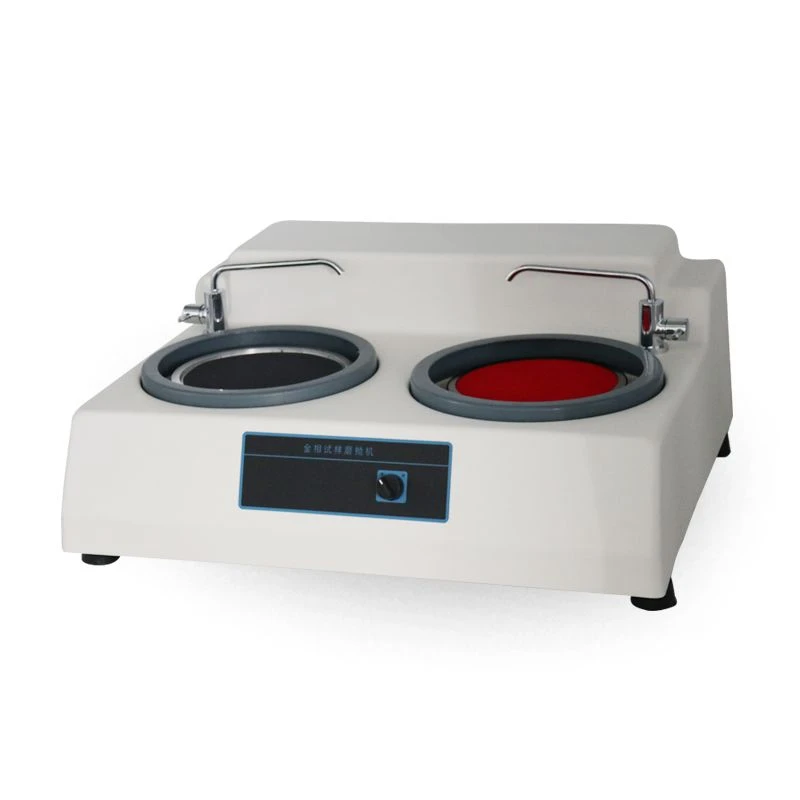

• MP-2 (Basic Dual Disc Fixed Speed Grinder Polisher)

Classic economical double disc metallographic grinding polishing machine with separate fixed speeds for grinding and polishing discs, ABS durable housing for regular industrial sample pretreatment.

• MP-2B (Single Control Variable Speed Double Disc Model)

50–1000rpm whole-unit stepless speed regulation dual disc equipment, simple centralized knob control, the most popular universal model for medium-volume lab metallographic testing.

• MP-2CE (Dual Disc Dual Independent Variable Speed Control Model)

Two separate 550W motors with independent speed adjustment for each disc, operators can set different rotating speeds on two platens to match different grinding & polishing processes.

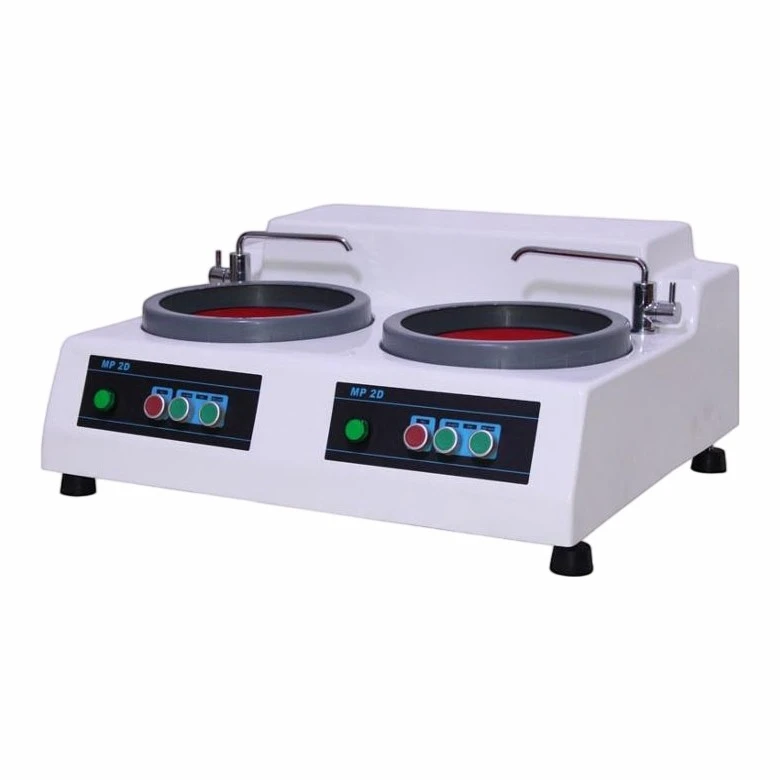

• MP-2D (Two-Speed Dual Control Industrial Model)

300/600rpm fixed dual-speed double disc polisher, supports 220V/380V dual input voltage options, designed for heavy-load continuous operation in large-scale production workshops.

• MP-2DE (Multi-Speed Forward Reverse Dual Disc Advanced Model)

Combines stepless speed, two preset fixed speeds and bidirectional disc rotation, flexible parameter adjustment for various metal, alloy and composite material metallographic analysis.

• MP-2S (Touch Screen Dual Disc Premium Polishing Machine)

LCD display control, four built-in constant speeds, high-strength fiberglass shell, large-size bench structure, ideal for high-standard R&D laboratories and batch standardized specimen preparation.

• MP-260 (Fixed Speed Double Disc Bench Polisher)

Dual 550W motors, 300/600rpm fixed rotating speed, stable operation, suitable for conventional mass metallographic sample grinding and polishing work.

• MP-260E (Variable Speed Bidirectional Rotation Double Disc Model)

Adjustable speed range 50–600rpm (upgradable to 1000rpm), clockwise & counter-clockwise rotation function, effectively reduces specimen edge deformation during precision polishing.

• Automotive parts quality inspection & failure analysis
• Aerospace, ship and machinery alloy material research
• University metallurgy, material science teaching and laboratory research
• Third-party material testing & certification institutions
• Hardware, mold, new energy component quality control
• Electronic component, bearing, welding joint microstructure detection

Single Disc Series Technical Parameters

Double Disc Series Technical Parameters

Standard Packing List for All Single Disc Models (MP-1B, MP-1B NEW, MP-1S, MP-160, MP-160E)

All 5 single-disc models are equipped with identical standard accessories, no optional spare parts included.

Standard Packing List for Double Disc Models
