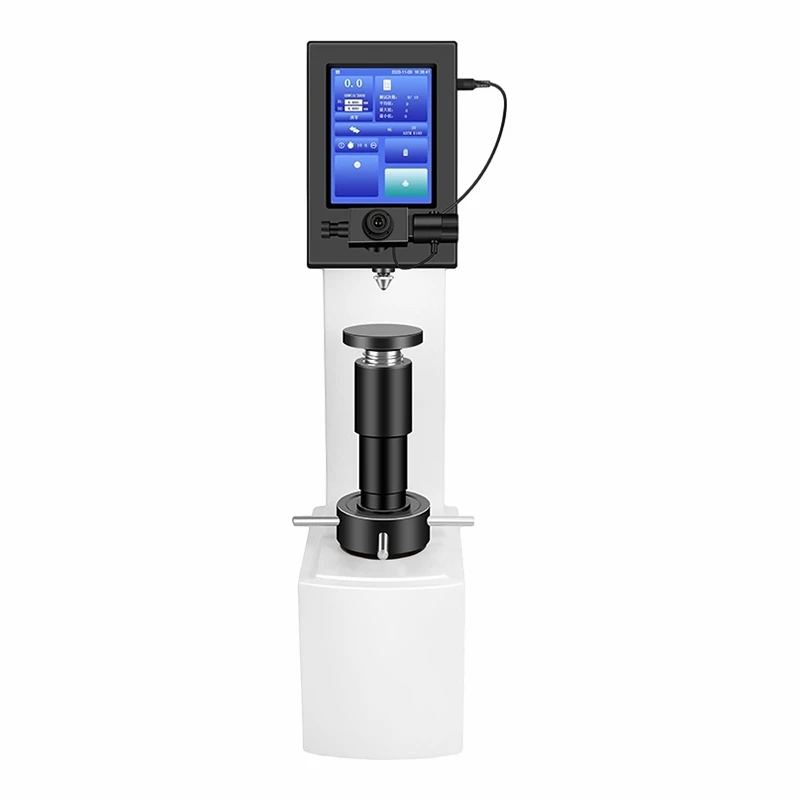

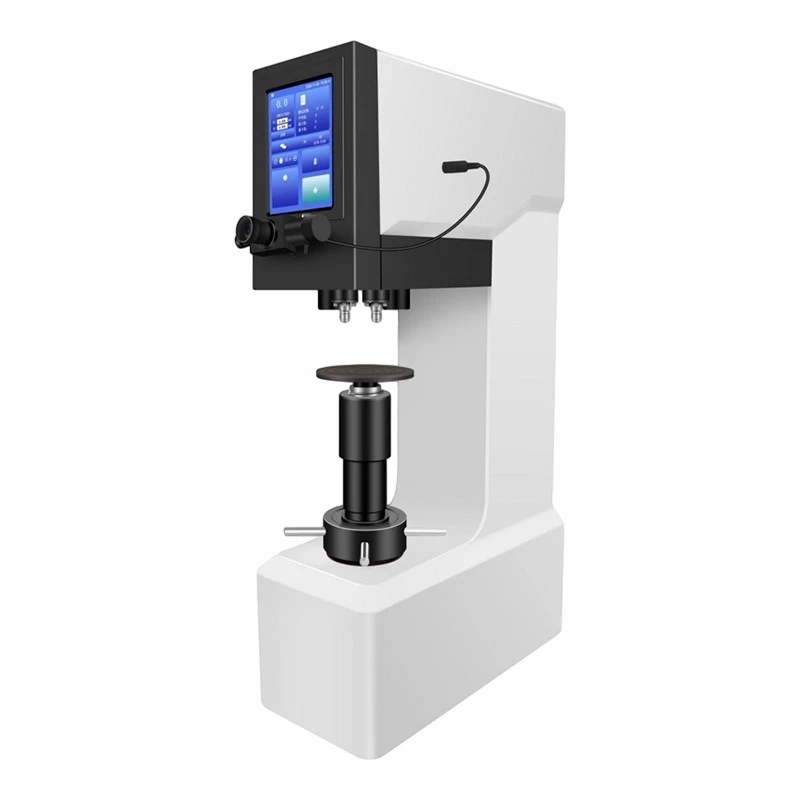

Our Automatic Turret Brinell Hardness Tester series covers three mainstream models: HBS-3000Z, 8MHBS-3000Z and HBS-3000ZPC, delivering high-precision, stable and automatic Brinell hardness detection for industrial and laboratory scenarios.
Designed for full-range material hardness testing, this digital display Brinell hardness tester accurately measures the hardness of ferrous metals, non-ferrous metals, unhardened steel, soft alloys, bearing alloys, and non-metallic materials like hard plastics and bakelite. Equipped with an electronic automatic loading system and automatic turret switching function, the equipment features simple operation, wide testing range and excellent durability, widely adopted in factories, workshops, laboratories, universities and scientific research institutions.
Product Features & Performance Advantages
Unlike conventional manual Brinell testing machines that rely on manual adjustment and weight stacking, our automatic Brinell hardness tester realizes automated loading, pressure holding, and unloading throughout the entire test process. The integrated cast body undergoes strict aging treatment, effectively avoiding structural deformation during long-term continuous operation and adapting to complex and harsh factory working environments. The automotive-grade surface paint provides excellent scratch resistance and durability, maintaining a clean appearance after years of use.
All models adopt an industrial touch screen for intuitive parameter setting and data viewing. Built-in adjustable LED light sources ensure clear indentation observation for different workpiece surfaces, greatly reducing visual reading errors. Each model supports independent hardness conversion and data output functions, meeting diverse needs of on-site testing, data recording, and formal report output.
Integrated Technical Parameters of 3 Models
All three automatic turret Brinell hardness testers comply with GB/T231.2, ISO6506-2 and ASTM E10 international standards, with a unified measuring range of 8-650HBW, covering most metal and soft non-metal material hardness testing scenarios. The detailed parameter comparison is as follows:
|
Parameter Item |
HBS-3000Z |
8MHBS-3000Z |
HBS-3000ZPC |
|
Measuring Range |
8-650HBW |
8-650HBW |
8-650HBW |
|
Test Force (kgf/N) |
31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf 750kgf, 1000kgf, 1500kgf, 3000kgf / 306.45N, 612.9N, 980.7N, 1266N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
306.45N(31.25kg) , 612.9N(62.5kg), 980.7N(100kg), 1226N(125kg), 1839N(187.5kg), 2452N(250kg), 4903N(500kg), 7355N(750kg), 9807N(1000kg),14710N(1500kg), 29420N(3000kg) |
31.25kgf,62.5kgf,100kgf,125kgf,187.5kgf,250kgf,500kgf,750kgf,1000kgf,1500kgf,3000kgf / 306.45N,612.9N,980.7N,1226N,1839N,2452N,4903N,7355N,8907N,14710N,29420N |
|
Hardness Conversion Scales |
HRA/HRB/HRC/HRD/HRF/HV/HK/HBW/HR15N /HR30N/HR45N/HR15T/HR30T/HR45T |
HRA/HRB/HRC/HRD/HRF/HV/HK/HBW /HR15N/HR30N/HR45N/HR15T/HR30T/HR45T |
14 scales (HRA/HRB/HRC/HRD/HRF/HV/HK/HBW/HR15N /HR30N/HR45N/HR15T/HR30T/HR45T) |
|
Indenter Specification |
Φ2.5mm, Φ5mm, Φ10mm |
Φ2.5mm, Φ5mm, Φ10mm (turret integrated installation) |
Φ2.5mm, Φ5mm, Φ10mm |
|
Objective Lens |
20X magnification |
1X, 2X objective lens + 20X eyepiece |
20X magnification |
|
Max Specimen Height |
280mm |
270mm |
280mm |
|
Indenter Center to Wall Distance |
150mm |
190mm |
150mm |
|
Dwelling Time Range |
0-99s |
0-99s |
0-99s |
|
Data Output Mode |
Built-in printer |
Built-in printer, RS232 interface |
Built-in printer, USB interface |
|
Light Source |
Adjustable LED light source |
Adjustable LED light source |
Adjustable LED light source |
|
Reading Mode |
Touch screen digital display |
Digital micrometer display |
Touch screen LCD digital display |
|
Overall Dimension (L×W×H) |
230*600*920mm |
1000×595×350mm |
230*600*920mm |
|
Net Weight |
130kg |
150kg |
130kg |
|
Packing Size / Volume |
73*54*107cm / 0.42CBM |
73*54*107cm / 0.42CBM |
73*54*107cm / 0.42CBM |
|
Gross Weight |
165KG |
165KG |
165KG |
Integrated Standard Configuration (Full Models Universal + Exclusive Accessories)
|
Accessory Name |
Specification |
Quantity |
Applicable Model |
|
Hardness Tester Host |
Original standard host |
1 Set |
HBS-3000Z / 8MHBS-3000Z / HBS-3000ZPC |
|
Hard Ball Indenter |
Φ2.5mm / Φ5mm / Φ10mm |
1 Pc for each size |
All models |
|
Flat Workbench (Large/Small) |
Standard flat platform |
1 Pc each |
All models |
|
V-Shaped Workbench |
Curved workpiece testing |
1 Pc |
All models |
|
Brinell Hardness Standard Block |
100±25HBW 10/1000,200±50HBW 10/3000 |
2 Pcs |
All models |
|
Digital Micrometer / Micrometer Eyepiece |
High-precision indentation measurement |
1 Set |
All models |
|
Dust Cover & Power Line |
Standard factory accessories |
1 Pc each |
All models |
|
Accessory Box |
Special storage box |
1 Pc |
All models |
|
User Manual & Certificate of Conformity |
Original official documents |
1 Set each |
All models |
|
Objective Lens |
1X / 2X |
3 Pcs |
8MHBS-3000Z Exclusive |
|
Allen Key & Fuse |
5A fuse & maintenance tools |
1 Set |
8MHBS-3000Z Exclusive |
Model Selection Guide
1.HBS-3000Z Standard Model: Cost-effective basic version, suitable for conventional industrial batch testing with basic hardness detection and printing functions.
2.8MHBS-3000Z Upgrade Model: Equipped with dual objective lenses and longer detection distance, ideal for high-precision laboratory and research institution testing.

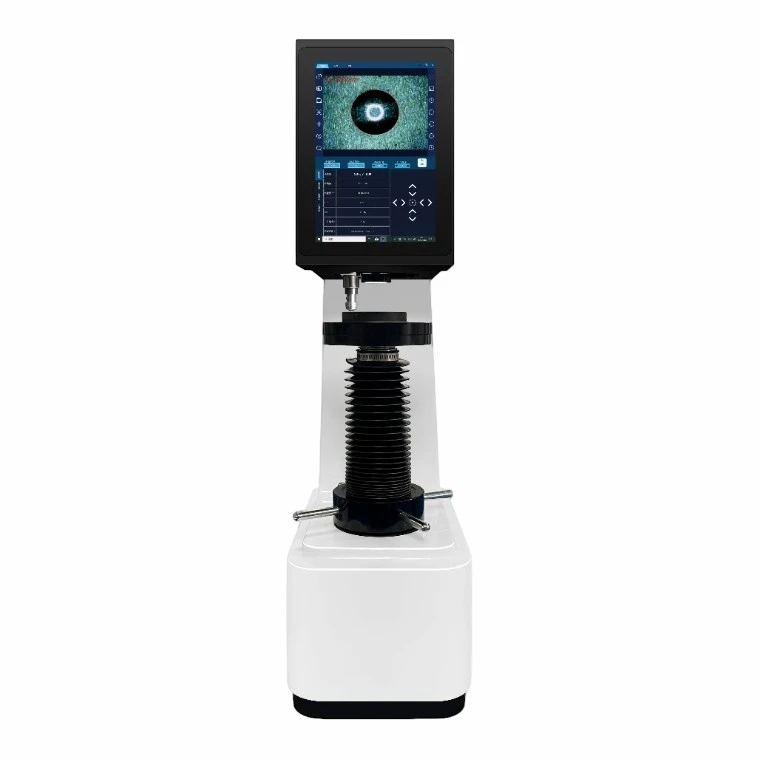

3.HBS-3000ZPC Image Processing Model: Supports full-scale hardness conversion and USB data export, perfect for enterprises needing digital data archiving and multi-scene hardness value conversion.
